제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | HT250 | 이름: | 슬롯과 6000 Ｘ 3000 밀리미터 무거운 캐스트 아이언 플레이트 |
|---|---|---|---|
| 타입: | 빈 유형 | 평탄성: | 2 급료 |
| 사이즈: | 클라이언트 요청 | 표면가공도: | 마무리를 기계화하기 |
| 견고성: | 230 | Ｔ 슬롯사이즈: | M24 |
| 거리 Ｔ 슬롯: | 250 mm | 방위 수용량: | 30Tons |
| 하이 라이트: | 6000x3000mm은 철 평판을 던졌습니다,6000x3000은 철 평판을 던졌습니다,OEM은 철 평판을 던졌습니다 |
||

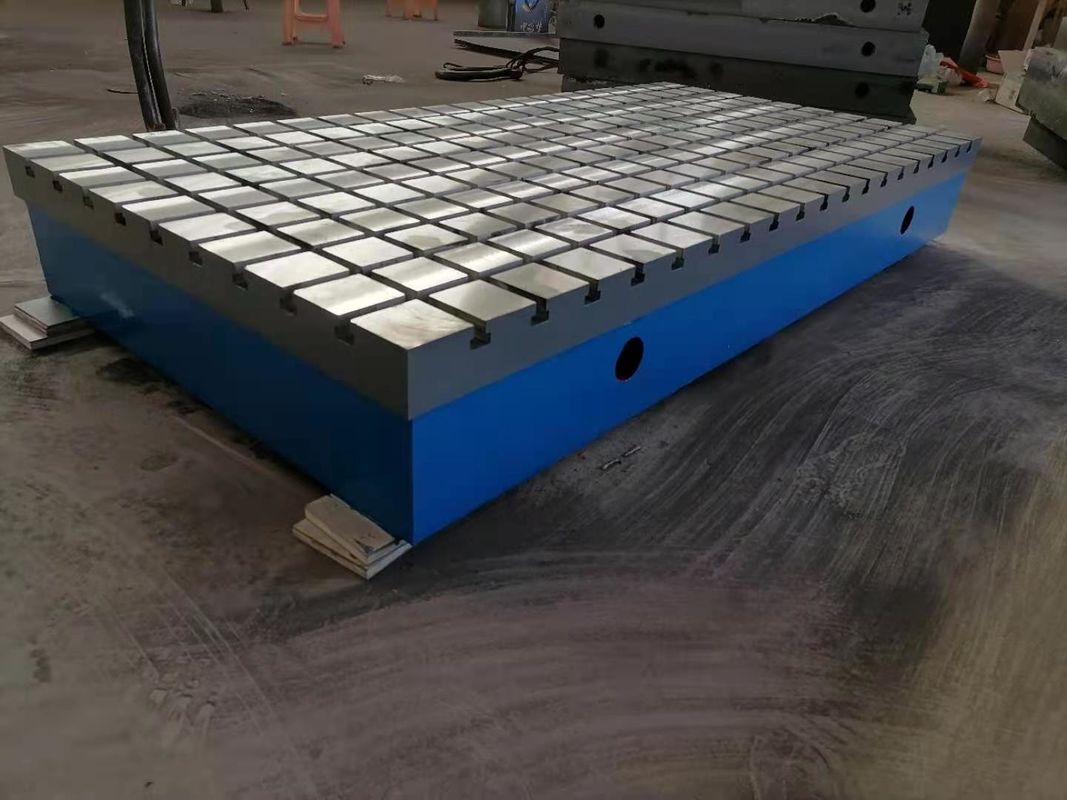

6000 x 3000 mm Heavy Cast Iron Plate with Slots
Willing Cast Iron T-Slotted Bed Plates / Floor Plates are being used in various industries for varied application like mounting of large jobs while machining, used as precision base for Marking, Inspection, Assembly, Fabrication, checking accuracy of other surfaces and many other types of operations.
Willing Bed Plates manufactured completely in house, with world class manufacturing facility equipped with CNC machines, starting from Design, Casting, Machining and till finish and packing to ensure product quality, with international standards like IS and DIN having Cored and ribbed construction, Cast Iron of grade starting from FG 200 (as per IS 210) OR GG-20 to FG-300 OR GG-30 (or higher) having hardness minimum 160 BHN.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| Specification (mm) | Flatness tolerance (um) | |||
| Grade2 | Grade 3 | Finihs plane | ||
| 1000x750 | 36 | 90 | ||
| 1000x1000 | 39 | 96 | ||
| 1500x1000 | 48 | 120 | ||
| 2000x1000 | 52 | 129 | ||
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Notice for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
