제품 소개화강암 정반

입지와 00 등급 1200x800mm 래핑 화강암 정반

제가 지금 온라인 채팅 해요

입지와 00 등급 1200x800mm 래핑 화강암 정반

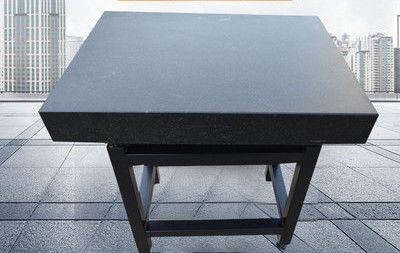

00 Grade 1200x800mm Lapping Granite Surface Plate With Stand
00 Grade 1200x800mm Lapping Granite Surface Plate With Stand

큰 이미지 :  입지와 00 등급 1200x800mm 래핑 화강암 정반

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Willing
인증: CO
모델 번호: 1200 X 800 밀리미터
결제 및 배송 조건:
최소 주문 수량: 5
가격: Negotiable
포장 세부 사항: 나무로 됩니다
배달 시간: 10 작업 일수
지불 조건: 전신환, 웨스턴 유니온, 머니그램
공급 능력: 100PC /30days
상세 제품 설명
재료: 어두운 색 화강암 평탄성: 00 급료
사이즈: 1200 X 800 밀리미터 중량: 250 킬로그램
이름: 화강암 정반 보증: 1년이요
하이 라이트:

1200x800mm 래핑 화강암 정반

,

입지와 화강암 정반을 싸기

,

00 등급 화강암 래핑 플레이트

1200 x 800 mm Black Flat Granite Lapping Plate



High precision granite surface plates can provide an accurate reference plane for work inspection and for work layout. The high degree of flatness, quality and workmanship also make them ideal bases for mounting sophisticated mechanical, electronic and optical gauging systems.


feature



  1. Alkali and acid resistant, smooth surface
  2. No ridges, burrs,
  3. Wear resistance, anti-magnetization
Specification
Place of Origin
China
Brand Name
Willing
Model Number
Willing-Granite
Place of Origin
Hebei, China
Material
Granite
Size
200x200mm -- 4000x8000mm
Accuracy
00, 0, 1, 2, 3
Machining
Fine grinding
Certificate
ISO9001
OEM and ODM
Acceptable
Accessory
stand
Packaging
export standard
Standard
DIN/JIS/GB




Repeatability:

  • Grade "B" Toolroom ± 100 Millionths
  • Grade "A" Inspection ± 50 Millionths



Our granite surface plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:



Grade 000 =1x(1+d/1000)/μm

Grade 00 =2x(1+d/1000)/μm

Grade 0 =4x(1+d/1000)/μm

Grade 1 =8x(1+d/1000)/μm



(d is the length of the diagonal)

Specification
Length × Width × Thickness (mm)

Weight (kgs)

Precision Grade (μm)

000

00

0

1

300 × 200 × 50

17

1.5

3

6

12

300 × 300 × 50

19

1.5

3

6

12

400 × 300 × 70

25

1.5

3

6

12

400 × 400 × 70

48

2

3.5

6.5

13

630 × 400 × 100

76

2

3.5

7

14

630 × 630 × 100

155

2

4

8

16

800 × 500 × 130

156

2

4

8

16

1000 × 630 × 130

284

2.5

4.5

9

18

1000 × 750 × 150

338

2.5

5

9

18

1000 × 1000 × 150

450

2.5

5

10

20

1600 × 1000 × 200

963

3

6

12

24

2000 × 1000 × 200

1200

3.5

6.5

13

26

1600 × 1600 × 300

2312

3.5

6.5

13

26

2000 × 1600 × 300

2890

3.5

7

14

28

2500 × 1600 × 300

3612

4

8

16

32

3000 × 2000 × 500

9030

4.5

9

18

36

4000 × 2000 × 500

12040

5.5

11

22

44

6000 × 2000 × 700

25284

7.5

15

30

60



입지와 00 등급 1200x800mm 래핑 화강암 정반 0
